Writing and deploying your first subgraph

We've covered why indexers exist and how The Graph works conceptually. Now let's actually build one for ChainElect.

By the end of this lesson, you'll have a deployed subgraph that answers the question:

"Give me the top 10 candidates sorted by vote count."

With instant response time, no RPC calls, and no on-chain read limits.

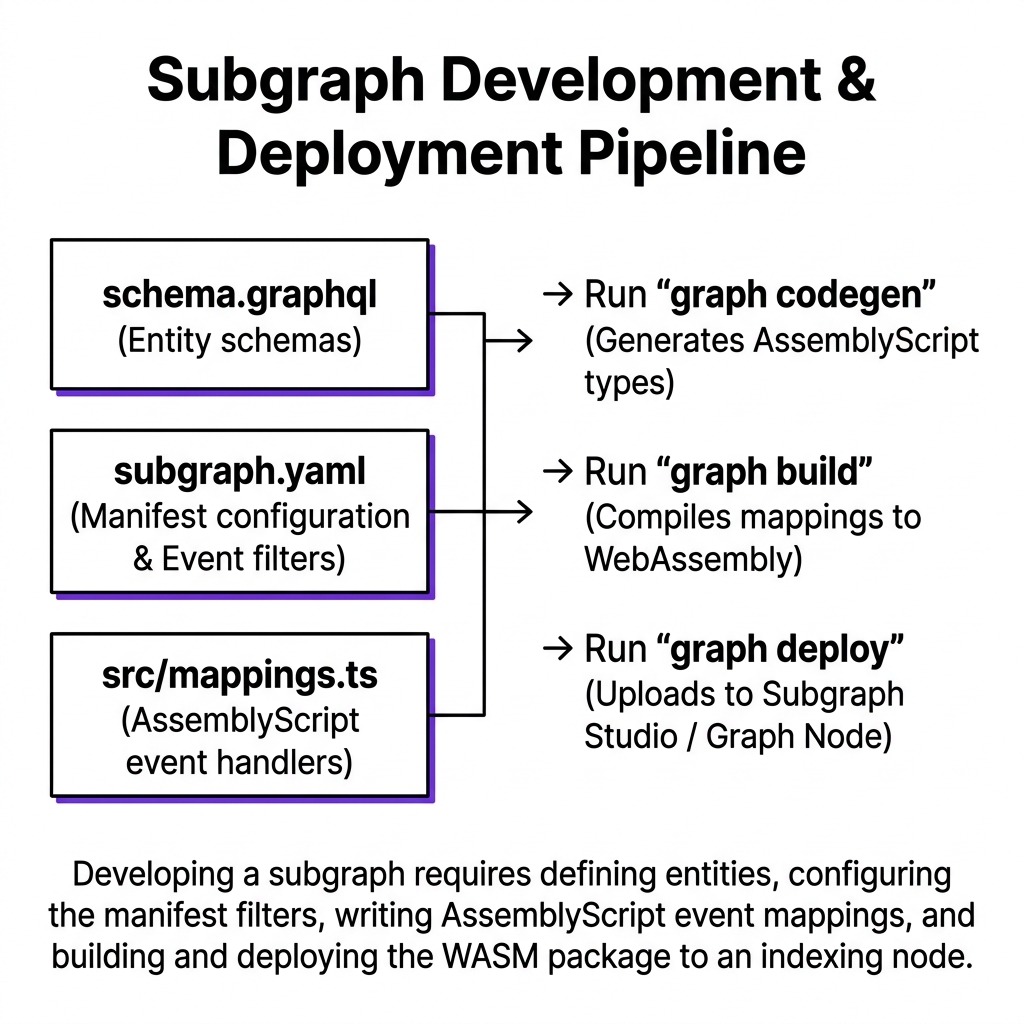

Subgraph Development & Deployment Pipeline — Developing a subgraph requires defining entities, configuring the manifest filters, writing AssemblyScript event mappings, and building and deploying the WASM package to an indexing node.

1. Project Setup

Install The Graph CLI:

terminal

bash

npm install -g @graphprotocol/graph-cli

Initialize a new subgraph project for ChainElect:

terminal

bash

graph init --product subgraph-studio \
  --from-contract 0xdbbFB787ee25aC1d3E85f5a1CE7556195dbA6286 \
  --network matic \
  --abi ./context/contracts/MyContract.sol \
  chainalect-subgraph

This scaffolds the three files: subgraph.yaml, schema.graphql, and src/mapping.ts.

2. Schema: Define the Data Model

Replace the scaffolded schema.graphql with our ChainElect model:

schema.graphql

graphql

# schema.graphql

type Candidate @entity(immutable: false) {
  id: ID!           # candidateId as string
  name: String!
  voteCount: BigInt!
  votes: [VoteRecord!]! @derivedFrom(field: "candidate")
}

type Voter @entity(immutable: false) {
  id: ID!           # wallet address
  hasVoted: Boolean!
  votedFor: Candidate
  registeredAt: BigInt
}

type VoteRecord @entity(immutable: true) {
  id: ID!           # tx hash + log index
  voter: Voter!
  candidate: Candidate!
  blockTimestamp: BigInt!
  transactionHash: Bytes!
}

type ElectionStatus @entity(immutable: false) {
  id: ID!           # singleton: "status"
  isActive: Boolean!
  startTime: BigInt
  endTime: BigInt
}

Key design decisions:

Candidate.votes uses @derivedFrom — it's not stored, but computed from VoteRecord.candidate references. This gives you candidate → all votes without storing duplicate data.
VoteRecord is immutable: true — votes never change, so The Graph can optimize storage.
ElectionStatus is a singleton entity (id: "status") representing the global voting state.

3. Manifest: Tell The Graph What to Watch

Update subgraph.yaml:

subgraph.yaml

yaml

# subgraph.yaml
specVersion: 0.0.5
schema:
  file: ./schema.graphql
dataSources:
  - kind: ethereum
    name: MyContract
    network: matic
    source:
      address: "0xdbbFB787ee25aC1d3E85f5a1CE7556195dbA6286"
      abi: MyContract
      startBlock: 12000000  # Block when ChainElect was deployed
    mapping:
      kind: ethereum/events
      apiVersion: 0.0.7
      language: wasm/assemblyscript
      entities:
        - Candidate
        - Voter
        - VoteRecord
        - ElectionStatus
      abis:
        - name: MyContract
          file: ./abis/MyContract.json
      eventHandlers:
        - event: CandidateAdded(string)
          handler: handleCandidateAdded
        - event: Voted(indexed address,indexed uint256)
          handler: handleVoted
        - event: VotingStarted(uint256)
          handler: handleVotingStarted
        - event: VotingEnded()
          handler: handleVotingEnded
        - event: VoterRegistered(address)
          handler: handleVoterRegistered
      file: ./src/mapping.ts

4. Handlers: The AssemblyScript Logic

types.ts

typescript

// src/mapping.ts
import {
  CandidateAdded,
  Voted,
  VotingStarted,
  VotingEnded,
  VoterRegistered
} from "../generated/MyContract/MyContract";
import { Candidate, Voter, VoteRecord, ElectionStatus } from "../generated/schema";
import { BigInt } from "@graphprotocol/graph-ts";

let candidateCounter = 0; // Note: use a Counter entity in production

export function handleCandidateAdded(event: CandidateAdded): void {
  candidateCounter++;
  let id = candidateCounter.toString();

  let candidate = new Candidate(id);
  candidate.name = event.params.name;
  candidate.voteCount = BigInt.fromI32(0);
  candidate.save();
}

export function handleVoted(event: Voted): void {
  let candidateId = event.params.candidateId.toString();
  let voterAddress = event.params.voter.toHex();

  // Update candidate vote count
  let candidate = Candidate.load(candidateId);
  if (candidate) {
    candidate.voteCount = candidate.voteCount.plus(BigInt.fromI32(1));
    candidate.save();
  }

  // Update voter status
  let voter = Voter.load(voterAddress);
  if (!voter) {
    voter = new Voter(voterAddress);
    voter.hasVoted = false;
    voter.registeredAt = BigInt.fromI32(0);
  }
  voter.hasVoted = true;
  voter.votedFor = candidateId;
  voter.save();

  // Create immutable vote record
  let voteId = event.transaction.hash.toHex() + "-" + event.logIndex.toString();
  let vote = new VoteRecord(voteId);
  vote.voter = voterAddress;
  vote.candidate = candidateId;
  vote.blockTimestamp = event.block.timestamp;
  vote.transactionHash = event.transaction.hash;
  vote.save();
}

export function handleVotingStarted(event: VotingStarted): void {
  let status = ElectionStatus.load("status");
  if (!status) status = new ElectionStatus("status");

  status.isActive = true;
  status.startTime = event.block.timestamp;
  status.endTime = event.params.endTime;
  status.save();
}

export function handleVotingEnded(_event: VotingEnded): void {
  let status = ElectionStatus.load("status");
  if (!status) return;

  status.isActive = false;
  status.save();
}

export function handleVoterRegistered(event: VoterRegistered): void {
  let voterAddress = event.params.voter.toHex();
  let voter = Voter.load(voterAddress);

  if (!voter) {
    voter = new Voter(voterAddress);
    voter.hasVoted = false;
  }
  voter.registeredAt = event.block.timestamp;
  voter.save();
}

5. Deploy to Subgraph Studio

terminal

bash

# Build the subgraph (compiles AssemblyScript to WASM)
graph codegen && graph build

# Authenticate with Subgraph Studio
graph auth --studio <YOUR_DEPLOY_KEY>

# Deploy
graph deploy --studio chainalect-subgraph

6. Query Your Data

After deployment, query the GraphQL endpoint:

SmartAccount.sol

graphql

# Top 5 candidates by votes
query Leaderboard {
  candidates(orderBy: voteCount, orderDirection: desc, first: 5) {
    id
    name
    voteCount
  }
}

# All votes for candidate ID 1
query CandidateVotes {
  voteRecords(where: { candidate: "1" }, orderBy: blockTimestamp, orderDirection: desc) {
    voter { id }
    blockTimestamp
    transactionHash
  }
}

# Current election status
query ElectionStatus {
  electionStatus(id: "status") {
    isActive
    startTime
    endTime
  }
}

These queries resolve in under 100ms — no RPC calls, no blockchain reads, no rate limits.

// I Got This Wrong

The startBlock Oversight: If you don't specify startBlock in subgraph.yaml, The Graph will index from block 0 — scanning the entire blockchain history. For a contract deployed at block 12,000,000 on Polygon, this means processing 12 million empty blocks before reaching your data. Always set startBlock to your contract's deployment block. Find it on PolygonScan → your contract → "Contract Creator" transaction block number.

— Postmortem Confession

System Design Challenge

Think Active

Deploy the ChainElect subgraph to Subgraph Studio. Cast 3 votes from your MetaMask wallet to different candidates. Wait 30-60 seconds for the indexer to process the blocks. Then query the leaderboard endpoint and verify that your votes appear. Now write a query that returns all VoteRecord entities for a specific voter address. Does the result match what you see on-chain via Etherscan?

[ Think Before Continuing ]
